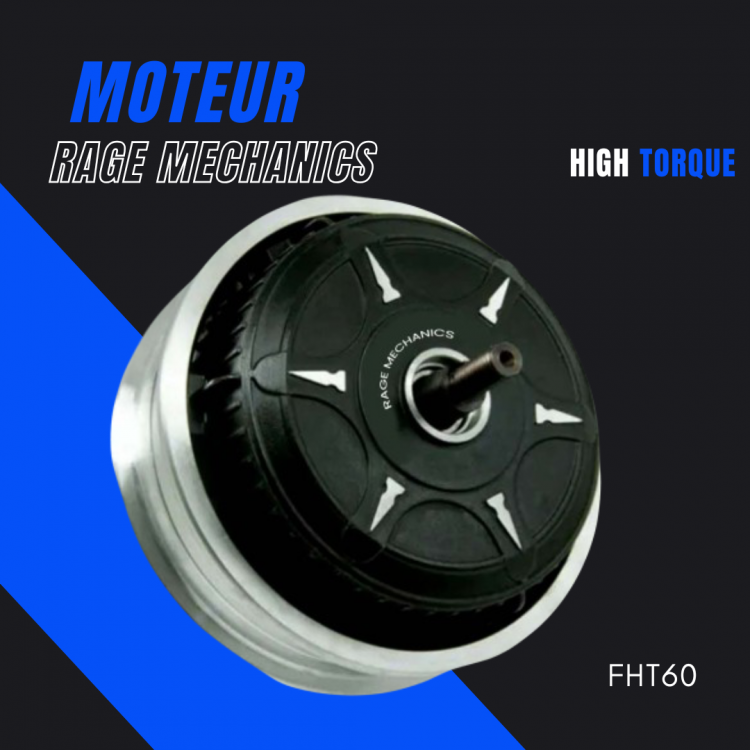

The FHT60 Motor is a 10-inch high-torque hub motor supplied with split rims, designed for compact and mid-size scooters: Kaabo Mantis, Dualtron 2 / 3 / New / Eagle / Victor, Ninebot Max G30 equipped with Monorim suspensions. 60 mm magnets, 4 mm² phase cables, 3500 W nominal: significantly more headroom than the stock motor, without changing the wheel size.
Which rider is this for?
You want violent standing starts, strong hill-climbing, riding heavy or with dual motors without ever feeling the motor struggle. Top speed is slightly lower than the HIGH SPEED version, but responsiveness is incomparable.
Technical specifications
- Type: high-torque brushless hub motor (a long winding: fewer RPMs but much more torque, for sharp take-offs, climbs, and heavy riders)
- Magnets: 60 mm
- No-load speed at 60 V: 1380 RPM
- No-load speed at 72 V: 1656 RPM
- Phase cables: 4 mm²
- Nominal power: 3500 W
- Hall sensors: yes, compatible with VESC / 3Shul / stock controllers
- Split rims: 6" inner-tube split rims, included
- Tires: 8.5" or 10"
- Weight: approx. 7 kg
Compatibility
Supplied with 6" inner-tube split rims for 8.5" and 10" tires, minimum swingarm opening: 125 mm.
Fits on: Kaabo Mantis, Dualtron 2 / 3 / New / Eagle / Victor, Ninebot Max G30 equipped with Monorim suspensions and disc mounts.
Your scooter is not on the list? Our motors adapt to most machines on the market: axle spacing and length are adjusted with custom-machined axles and spacers (stainless steel axle kit, spacers), and we regularly fit these motors on models not listed here. Send us a photo of the swingarm and stock motor with the measured swingarm opening: we will confirm feasibility prior to shipping.
What you need around the motor
- The controller: this motor only makes sense with a controller capable of feeding it. A VESC controller (3Shul and compatible) controlled by our SmartDisplay allows you to adjust current and curves to exploit it; a stock controller will work, but will limit the power.
- Wiring: 4 mm² phase wires require top-quality connectors (8 mm bullets) and a clean harness — see our braided sleeves and connectors.
- Rim and tire: split rims supplied; provide 8.5" or 10" tire and inner tube.
Manufacturing and warranty
Each motor is checked in our workshop in Lyon before shipping. We ride with these motors in competition, and feedback from our riders is used directly to evolve the range. Fast shipping in France and Europe, technical support by e-mail for controller selection and setup.
Frequently asked questions
My swingarm has an opening of less than 125 mm, will it fit?
No, 125 mm is the minimum opening. Measure between the two inner faces of the swingarm before ordering; we can machine custom axles for certain cases.
FH60, FHS60, FHT60: which one to choose?
FH60 is the versatile version, FHS60 the speed version (2900 RPM at 60 V), FHT60 the torque version (1380 RPM at 60 V). For a Mantis in the city: FHT60 or FH60; for top speed: FHS60.
Compatible with my stock controller?
Yes, standard Hall sensors. Just check that your controller accepts the necessary current; otherwise a VESC controller is the ideal complement.
