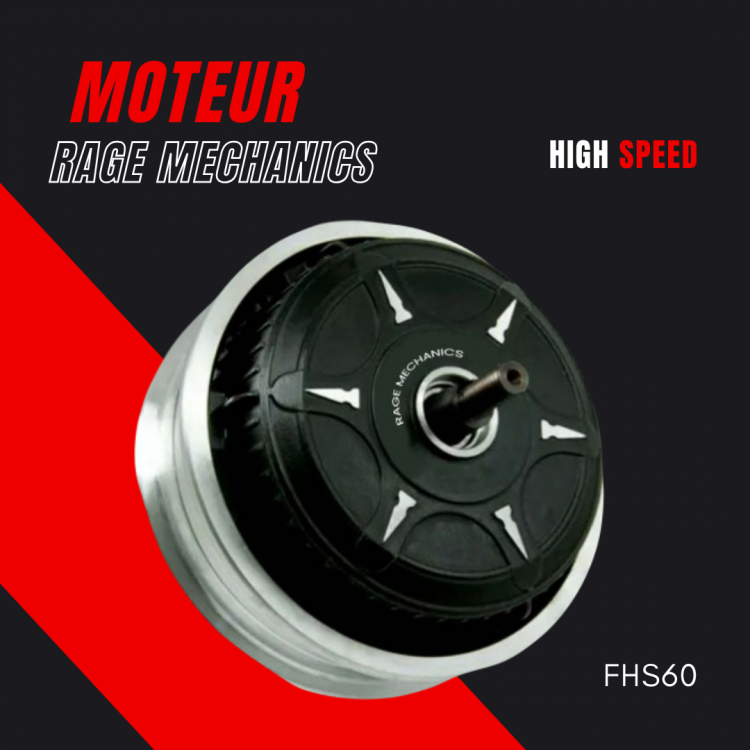

The FHS60 Motor is a high-speed 10-inch hub motor supplied with split rims, designed for compact and intermediate scooters: Kaabo Mantis, Dualtron 2 / 3 / New / Eagle / Victor, Ninebot Max G30 equipped with Monorim suspensions. 60 mm magnets, 4 mm² phase cables, 3500 W nominal: much more reserve than the original motor, without changing the wheel size.
Which rider is this for?
You are looking for top speed: track, long straight lines, light to average rider. If your use is mostly urban with plenty of acceleration and hills, check out the HIGH TORQUE version of the same size.
Technical specifications
- Type : high-speed brushless hub motor (short winding: more RPM at equal voltage, hence higher top speed at the expense of a little starting torque)
- Magnets : 60 mm
- No-load speed at 60 V : 2900 rpm
- No-load speed at 72 V : 3480 rpm
- Phase cables : 4 mm²
- Nominal power : 3500 W
- Hall sensors : yes, compatible with VESC / 3Shul / stock controllers
- Split rims : 6" inner-tube split rims, included
- Tires : 8.5" or 10"
- Weight : approx. 7 kg
Compatibility
Supplied with 6" inner-tube split rims for 8.5" and 10" tires, minimum swingarm opening: 125 mm.
Fits on : Kaabo Mantis, Dualtron 2 / 3 / New / Eagle / Victor, Ninebot Max G30 equipped with Monorim suspensions and disc mounts.
Your scooter is not on the list? Our motors adapt to most machines on the market: axle spacing and length are adjusted with custom-machined axles and spacers (stainless steel axle kit, spacers), and we regularly fit these motors on models not listed here. Send us a photo of the swingarm and original motor with the measured swingarm opening: we will confirm feasibility before shipping.
What you need around the motor
- The controller : this motor only makes sense with a controller capable of feeding it. A VESC controller (3Shul and compatible) controlled by our SmartDisplay allows you to adjust current and curves to exploit it; a stock controller will work, but will limit power.
- Wiring : 4 mm² phases require high-grade connectors (8 mm bullets) and a clean wiring harness — see our braided sleeves and connectors.
- Rim and tire : split rims included; plan for an 8.5" or 10" tire and inner tube.
Manufacturing and warranty
Each motor is checked in our workshop in Lyon before shipping. We race with these motors, and feedback from our riders is used directly to evolve the lineup. Fast shipping in France and Europe, technical support by e-mail for controller selection and setup.
Frequently asked questions
My swingarm has an opening of less than 125 mm, will it fit?
No, 125 mm is the minimum opening. Measure between the two inner faces of the swingarm before ordering; we can machine custom axles for certain cases.
FH60, FHS60, FHT60: which one to choose?
FH60 is the versatile version, FHS60 the speed version (2900 rpm at 60 V), FHT60 the torque version (1380 rpm at 60 V). For a Mantis in the city: FHT60 or FH60; to chase speed: FHS60.
Compatible with my stock controller?
Yes, standard Hall sensors. Just check that your controller accepts the required current; otherwise, a VESC controller is the ideal complement.
