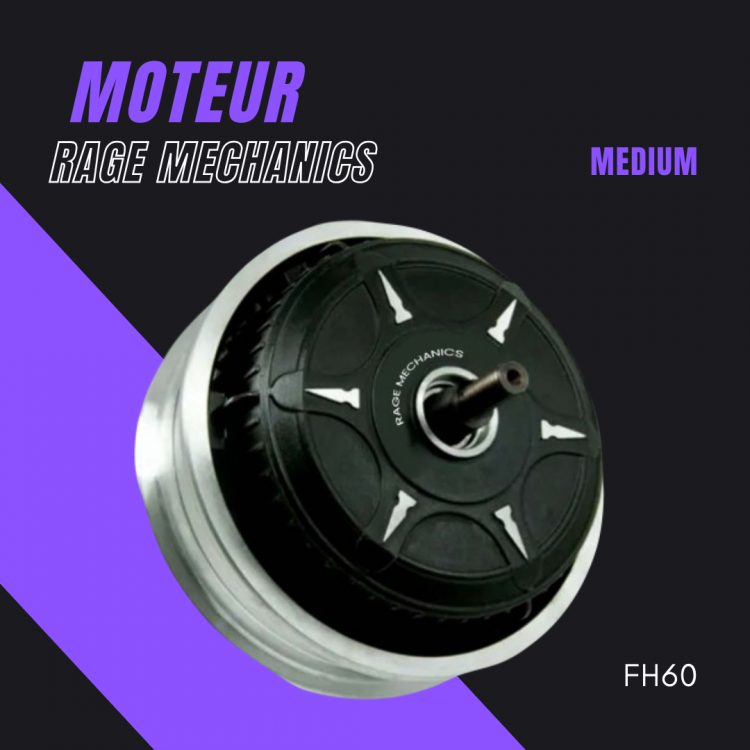

The FH60 Motor is a versatile 10-inch hub motor supplied with split rims, designed for compact and mid-size electric scooters: Kaabo Mantis, Dualtron 2 / 3 / New / Eagle / Victor, Ninebot Max G30 equipped with Monorim suspensions. 60 mm magnets, 4 mm² phase cables, 3500 W nominal power: much more reserve power than the original motor, without changing the wheel size.
Which rider is this for?
You ride every day and want a reliable motor that handles the load well and doesn't overheat, without chasing records: it's the sensible choice for everyday road use.
Technical specifications
- Type: versatile brushless hub motor (intermediate winding, balanced between top speed and torque, for daily road use)
- Magnets: 60 mm
- No-load speed at 60 V: 1758 rpm
- No-load speed at 72 V: 2110 rpm
- Phase cables: 4 mm²
- Nominal power: 3500 W
- Hall sensors: yes, compatible with VESC / 3Shul / stock controllers
- Split rims: 6" inner-tube split rims, included
- Tires: 8.5" or 10"
- Weight: approx. 7 kg
Compatibility
Supplied with 6" inner-tube split rims for 8.5" and 10" tires, minimum swingarm width: 125 mm.
Fits on: Kaabo Mantis, Dualtron 2 / 3 / New / Eagle / Victor, Ninebot Max G30 equipped with Monorim suspensions and disc mounts.
Your scooter is not on the list? Our motors adapt to most machines on the market: the center distance and axle length are adjusted using custom-machined axles and spacers (stainless steel axle kit, spacers), and we regularly adapt these motors to models not listed here. Send us a photo of the swingarm and original motor with the measured swingarm opening: we will confirm feasibility before shipping.
What else you need around the motor
- The controller: this motor only makes sense with a controller capable of feeding it. A VESC controller (3Shul and compatible) controlled by our SmartDisplay allows you to adjust current and curves to exploit it fully; a stock controller will work, but will limit the power.
- Wiring: 4 mm² phase wires require heavy-duty connectors (8 mm bullets) and a clean wiring harness — see our braided sleeves and connectors.
- Rim and tire: split rims included; prepare an 8.5" or 10" tire and inner tube.
Manufacturing and warranty
Each motor is checked in our workshop in Lyon before shipping. We ride with these motors in competition, and feedback from our riders is used directly to improve the range. Fast shipping in France and Europe, technical support by e-mail for controller selection and setup.
Frequently asked questions
My swingarm width is less than 125 mm, will it fit?
No, 125 mm is the minimum opening. Measure between the two inner faces of the swingarm before ordering; we can machine custom axles for certain cases.
FH60, FHS60, FHT60: which one to choose?
FH60 is the versatile version, FHS60 the speed version (2900 rpm at 60 V), FHT60 the torque version (1380 rpm at 60 V). For a Mantis in the city: FHT60 or FH60; to chase speed: FHS60.
Compatible with my stock controller?
Yes, standard Hall sensors. Just check that your controller accepts the required current; otherwise, a VESC controller is the ideal complement.
