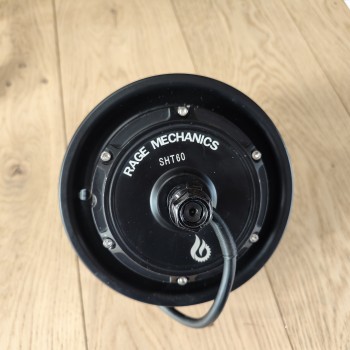

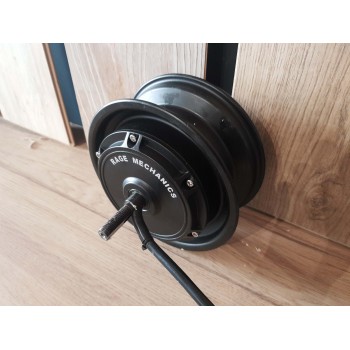

The SHT60 HIGH TORQUE Motor is a hub motor with an integrated tubeless rim for 11" to 13" scooters (Dualtron Thunder and Ultra, Bronco, Nami Burn-E, Weped FF, Rion, Kaabo Wolf). Featuring 60 mm magnets and 4 mm² phase cables, this is the entry-level motor in our range—high torque for a reliable, cost-effective original motor replacement.
Who is this for?
If you want aggressive standing starts, strong climbing ability, or the ability to ride fully loaded or with dual motors without ever feeling the motor struggle. While the top speed is slightly lower than the HIGH SPEED version, the responsiveness is incomparable.
Technical specifications
- Type: high-torque brushless hub motor (long winding: fewer RPMs but significantly more torque, for punchy starts, hill climbs, and heavier riders)
- Magnets: 60 mm
- Phase cables: 4 mm²
- Nominal power: 1200 W
- Hall sensors: yes, compatible with VESC / 3Shul / original controllers
- Rim: integrated 6.5" tubeless rim
- Tires: 11", 12" or 13"
- Weight: approx. 7 kg
Compatibility
Integrated 6.5" tubeless rim: no more inner tubes, roadside plug repair possible.
Fits on: Dualtron Thunder, Dualtron Ultra, Bronco Xtreme / Vnom, Nami Burn-E, Weped FF, Rion, Kaabo Wolf.
Is your scooter not on the list? Our motors adapt to most machines on the market: the axle spacing and length can be adjusted with custom-machined axles and spacers (stainless steel axle kits, spacers), and we regularly adapt these motors to models not listed here. Send us a photo of the swingarm and the original motor with the measured swingarm opening: we will confirm feasibility before shipping.
What to plan for around the motor
- The controller: this motor is only worth it with a controller capable of feeding it. A VESC controller (3Shul and compatible) controlled by our SmartDisplay allows you to adjust current and curves to fully utilize it; an original controller will work, but will limit the power.
- Wiring: 4 mm² phases require high-quality connectors (8 mm bullets) and a clean harness—see our braided sleeves and connectors.
- Rim and tire: rim included; plan for an 11", 12" or 13" tubeless tire (PMT, for example).
Options
Standard paint (black) or custom paint: specify the desired color in your order message; the motor is painted in our workshop before shipping (additional lead time of a few days).
Manufacturing and warranty
Each motor is checked in our workshop in Lyon before shipping. We ride with these motors in competition, and our riders' feedback is used directly to evolve the range. Fast shipping in France and Europe, technical support via email for controller selection and settings.
Frequently asked questions
What does "1200 W nominal" mean?
This is the power the motor handles continuously without overheating; at peak, it accepts significantly more for short durations. For sustained sporty use, upgrade to the W or M range.
SHS or SHT?
SHS for top speed, SHT for torque: for a heavy scooter or urban use, choose the SHT.
Is the tire included?
No: tubeless rim included, 11", 12" or 13" tire to be chosen separately.
