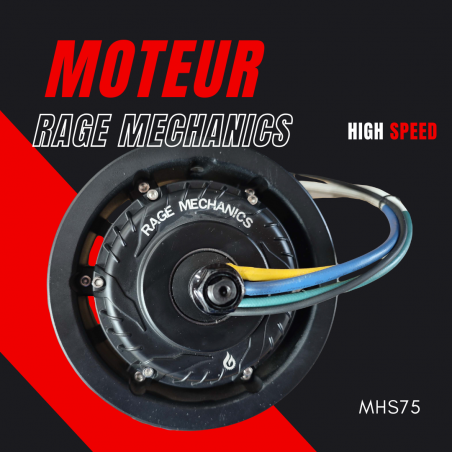

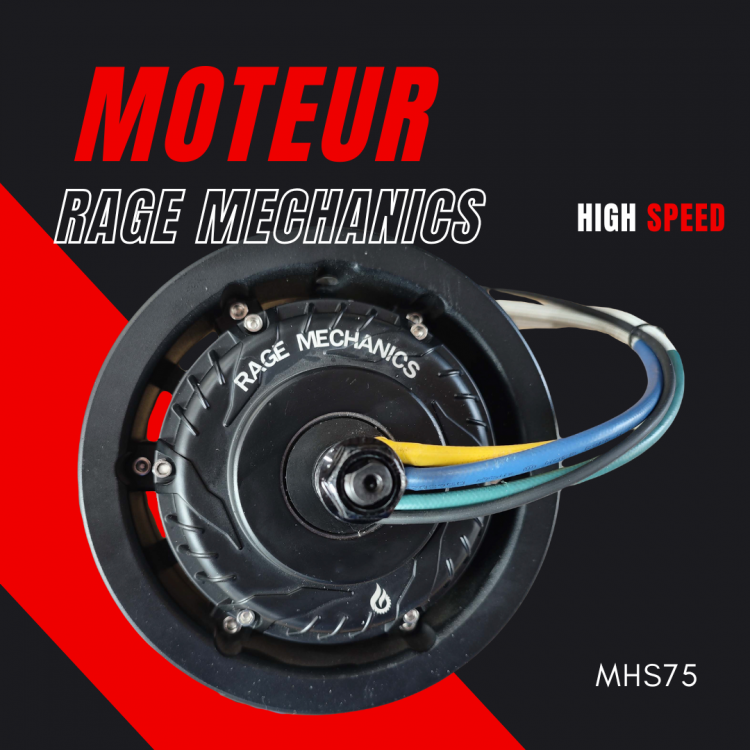

The MHS75 HIGH SPEED Motor is a high-speed hub motor supplied with its tubed split rims, designed to replace the original motors of large dual-motor scooters: Dualtron Thunder and Ultra, Bronco Xtreme, Nami Burn-E. 75 mm magnets, 10 mm² phase cables, 6000 W nominal: a motor built to be pushed to the limit by a high-performance controller.
Who is this for?
If you are looking for top speed: track, long straights, light to medium-weight rider. If your usage is more urban with frequent acceleration and hills, check out the HIGH TORQUE version of the same size.

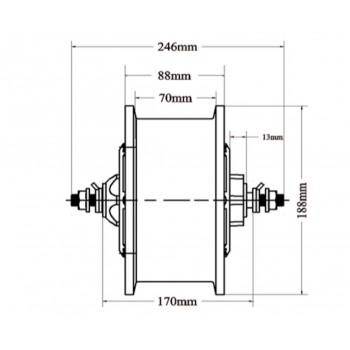

Technical specifications
- Type: high-speed brushless hub motor (short winding: more RPM at the same voltage, resulting in higher top speed at the cost of some starting torque)
- Magnets: 75 mm
- No-load speed at 60 V: 2340 RPM
- No-load speed at 72 V: 2808 RPM
- Phase cables: 10 mm²
- Nominal power: 6000 W
- Hall sensors: yes, compatible with VESC / 3Shul / original controllers
- Split rims: 6.5" tubed split rims, included
- Tires: 11", 12" or 13"
- Weight: approx. 8 kg
Compatibility
Supplied with 6.5" tubed split rims that open in two: tire changes are done without tire levers or struggle.
Fits on: Dualtron Thunder, Dualtron Ultra, Bronco Xtreme / Vnom, Nami Burn-E and compatible swingarm models.
Is your scooter not on the list? Our motors adapt to most machines on the market: the spacing and axle length are adjusted with custom-machined axles and spacers (stainless steel axle kit, spacers), and we regularly adapt these motors to models not listed here. Send us a photo of the swingarm and the original motor with the measured swingarm opening: we will confirm feasibility before shipping.
What you need to consider around the motor
- Controller: this motor is only worth it with a controller capable of feeding it. A VESC controller (3Shul and compatible) driven by our SmartDisplay allows you to adjust current and curves to exploit it; an original controller will work but will limit the power.
- Wiring: 10 mm² phases require high-quality connectors (8 mm bullets) and a clean harness — see our braided sleeves and connectors.
- Rim and tire: split rims are provided; plan for a tire and inner tube in the chosen size (11", 12" or 13").
- Ventilation: for intensive use or competition, our motor ventilation kit mounts on the cable-side flange and significantly improves cooling.
Manufacturing and warranty
Each motor is checked in our workshop in Lyon before shipping. We ride with these motors in competition, and feedback from our riders is used directly to evolve the range. Fast shipping in France and Europe, technical support by email for controller selection and tuning.
Frequently asked questions
What is the difference between MHS and MHT?
Same motor, two windings: MHS (HIGH SPEED) for top speed, MHT (HIGH TORQUE) for torque and acceleration. On a Thunder or a Nami for road use, the torque version is often more pleasant; on the track, the speed version.
What tires do the split rims accept?
11", 12" or 13" tubed tires. The split rims separate into two, making tire changes much simpler than a one-piece rim.
Can I install it myself?
If you have already replaced a scooter motor, yes: it is a direct replacement for the original. Otherwise, our workshop offers installation (installation package in the shop).
