Rage Mechanics CNC aluminum rim on brand visual
  • Rage Mechanics CNC aluminum rim fitted in its tire
  • Two CNC-machined aluminum Rage Mechanics rims, illuminated on a dark background

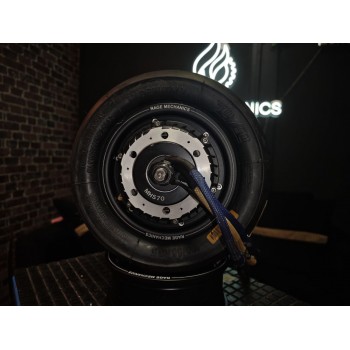

  • Complete wheel with Rage Mechanics CNC aluminum rim and MHS70 motor

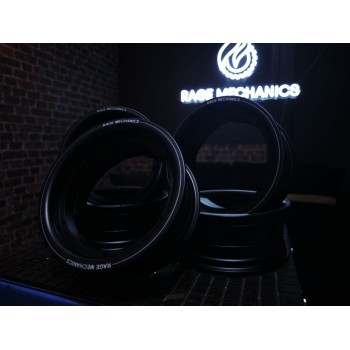

  • Rage Mechanics CNC aluminum rims in front of the workshop's illuminated sign

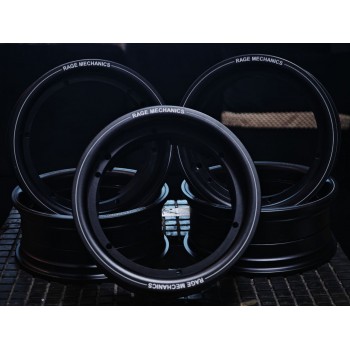

  • Four CNC aluminum Rage Mechanics rims presented on a black background
  • Rage Mechanics CNC aluminum rim on brand visual

Rage Mechanics CNC Aluminum Rim

€250.00
Tax included

or 4 × €62.50 interest-free

Klarna Scalapay
How it works

At the Payment step, choose “Card, or pay in installments interest-free”, then Klarna or Scalapay on Stripe's secure payment page. You get an answer instantly, with no interest or fees as long as installments are paid on time.

Epoxy Paint
Quantity
Last items in stock

Rage Mechanics CNC aluminum tubeless rim, black anodized, split-rim design that opens in two: for mounting "standard" tires (PMT 90/100/110, CST 90) on Weped and our XHS/XHT motors. Compatible with Lonnyo motors. Sold without tire or motor.

We designed this CNC-machined aluminum rim for two reasons: to give Weped scooters the comfort and handling of classic tires instead of the stock ones, and to equip our high-performance XHS75, XHT75, XHS80, XHT80, XHS90 motors. It is tubeless, black anodized, and most importantly, it is a split-rim: it opens in two, making tire changes take only a few minutes without tire levers.

Compatibility

  • Weped SSR, SST, SSGT, FS, GTS, GTR
  • Original Weped motors and original Weped FS motors
  • Rage Mechanics XHS75, XHT75, XHS80, XHT80, XHS90 motors
  • Lonnyo motors
  • PMT 90/65, 100/65, 110/65 and CST 90 tires

On Weped SST and GTS/SSGT, a quick modification of a few minutes is required: please specify your model when ordering.

Specifications

  • Material: CNC-machined aluminum
  • Finish: black anodized (epoxy paint optional)
  • Type: tubeless, two-piece split-rim
  • Diameter: 6.5"
  • Delivered: without tire, without motor

Epoxy paint

Professional epoxy paint option: white, blue, gold, yellow, black, orange, pink, or red. Allow one additional week for high-quality work.

FAQ

Why a split-rim?

Motorcycle tires are rigid: on a one-piece rim, mounting is a struggle. In two parts, you place the tire, close it, and tighten: just a few minutes.

Tubeless with a PMT?

Yes, this is the setup we use on our own machines.

Do I need one rim per motor?

Yes: one rim per wheel. For our XHS/XHT motors, select the "with CNC rim" option directly on the motor product page.

JAN-CNC65-BRUT
